Wemos D1 mini: A compact and powerful ESP8266 board for IoT projects

The Wemos D1 Mini is a small but powerful development board that has become a favorite for many hobbyists and professionals working in the world of Internet of Things (IoT) projects. Powered by the ESP8266 microcontroller, the Wemos D1 Mini offers incredible versatility, a wide range of features, and a compact design that makes it ideal for various applications. In this article, we will explore the key aspects of the Wemos D1 Mini, including its hardware specifications, features, programming, and its role in IoT development.

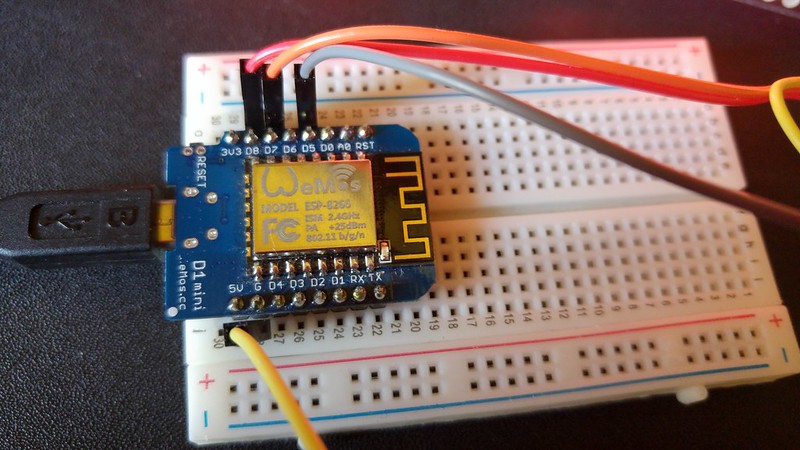

Image : Pierre Gorissen - CC BY-NC-ND 2.0

1. Introduction to Wemos D1 mini

The Wemos D1 Mini is a microcontroller board designed for IoT and wireless applications. It is based on the ESP8266 chip, which is a low-cost, low-power, Wi-Fi system on a chip (SoC). This small board is an excellent alternative to more expensive and bulky development boards like the Arduino, offering the benefit of built-in Wi-Fi, making it perfect for projects that require wireless communication. Its small size (with dimensions of approximately 34.2 x 25.6 mm) makes it ideal for compact projects, while its capabilities allow it to handle more complex tasks.

2. Key features of the Wemos D1 mini

2.1. Compact and portable

The Wemos D1 Mini is designed to be a compact development board, measuring just 34.2 x 25.6 mm. Despite its size, it still manages to pack a punch with a host of useful features, including Wi-Fi connectivity, GPIO pins, and support for Arduino programming.

2.2. Wi-Fi connectivity

One of the standout features of the Wemos D1 Mini is its built-in Wi-Fi. The ESP8266 chip allows the board to connect to a Wi-Fi network, enabling remote control and monitoring capabilities for IoT projects. This feature makes it suitable for applications such as home automation, smart devices, and sensor networks.

2.3. GPIO pins

The Wemos D1 Mini comes with 11 GPIO (General Purpose Input/Output) pins, which can be used to interface with external sensors, actuators, and other devices. Some of these pins support PWM (Pulse Width Modulation), ADC (Analog-to-Digital Conversion), and other functions, making it highly versatile for different types of IoT projects.

2.4. Compatibility with Arduino IDE

The Wemos D1 Mini is compatible with the Arduino Integrated Development Environment (IDE), which is one of the most popular platforms for programming microcontrollers. This means that you can use the Arduino IDE to write and upload code to the Wemos D1 Mini, making it easy for beginners and experienced developers alike to get started with their projects.

2.5. Low power consumption

The ESP8266 chip on the Wemos D1 Mini is designed to be power-efficient, which is an essential feature for battery-powered IoT devices. The low power consumption allows the board to run for extended periods on a small battery, making it ideal for remote or portable applications.

3. Setting up and programming the Wemos D1 mini

3.1. Installing the Arduino IDE

To start programming the Wemos D1 Mini, you first need to install the Arduino IDE, which is available for free on Windows, macOS, and Linux. Once installed, you need to add the ESP8266 board to the IDE. This can be done by going to File > Preferences and adding the following URL to the "Additional Boards Manager URLs" field: http://arduino.esp8266.com/stable/package_esp8266com_index.json

After that, navigate to Tools > Board > Boards Manager, search for "ESP8266" and install it.

3.2. Selecting the Wemos D1 mini board

Once the ESP8266 package is installed, go to Tools > Board and select "Wemos D1 R2 & mini" as your board. This will configure the Arduino IDE to work with the Wemos D1 Mini.

3.3. Writing code

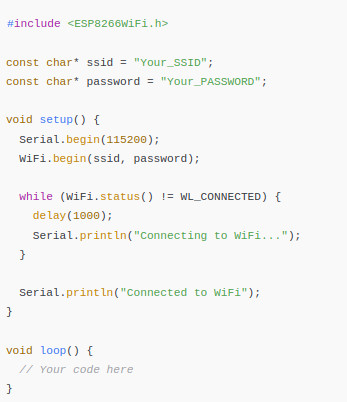

The next step is to write code for your project. You can use the various libraries available for the ESP8266 to easily implement Wi-Fi communication, sensors, and other features. A basic example to connect the Wemos D1 Mini to a Wi-Fi network is as follows:

3.4. Uploading the code

Once you have written the code, connect the Wemos D1 Mini to your computer using a micro USB cable. Click the "Upload" button in the Arduino IDE to upload the code to the board. Once the upload is complete, the Wemos D1 Mini will automatically run the code.

4. Applications of Wemos D1 mini in IoT

The Wemos D1 Mini is used in a wide variety of IoT applications due to its small size, Wi-Fi capabilities, and ease of use. Some popular applications include:

4.1. Home automation

The Wemos D1 Mini is often used in home automation projects to control devices like lights, fans, and security systems. With Wi-Fi connectivity, you can control these devices remotely through a smartphone app or web interface.

4.2. Smart sensors

The Wemos D1 Mini is ideal for connecting sensors like temperature, humidity, motion, and light sensors to the internet. These sensors can send data to a cloud platform for monitoring and analysis.

4.3. Weather stations

Using the Wemos D1 Mini, you can create a low-cost weather station that collects data from various environmental sensors. This data can be uploaded to a cloud service or displayed on a local web page.

4.4. Remote control projects

The Wemos D1 Mini can be used to create remote control systems for various devices, from controlling the operation of a robot to activating motors or solenoids for industrial applications.

5. Advantages of using Wemos D1 mini

Low Cost: The Wemos D1 Mini is one of the most affordable Wi-Fi-enabled development boards on the market, making it accessible to a wide range of users.

  • Compact Size: Its small size makes it ideal for space-constrained applications.

  • Wi-Fi Connectivity: The built-in Wi-Fi functionality opens up a wide range of possibilities for remote monitoring and control.

  • Arduino Compatibility: With the ability to program using the Arduino IDE, the Wemos D1 Mini is beginner-friendly while still offering advanced features for experienced developers.

  • Low Power Consumption: The board is energy-efficient, allowing it to run on small batteries for extended periods.

6. Conclusion

The Wemos D1 Mini is a versatile, cost-effective, and compact development board that is perfect for building IoT projects. Its combination of Wi-Fi connectivity, ease of use with the Arduino IDE, and low power consumption make it an excellent choice for both beginners and seasoned developers. Whether you're building a smart home system, weather station, or remote control application, the Wemos D1 Mini offers the flexibility and power you need to bring your ideas to life.
